Ilustrativni prikaz

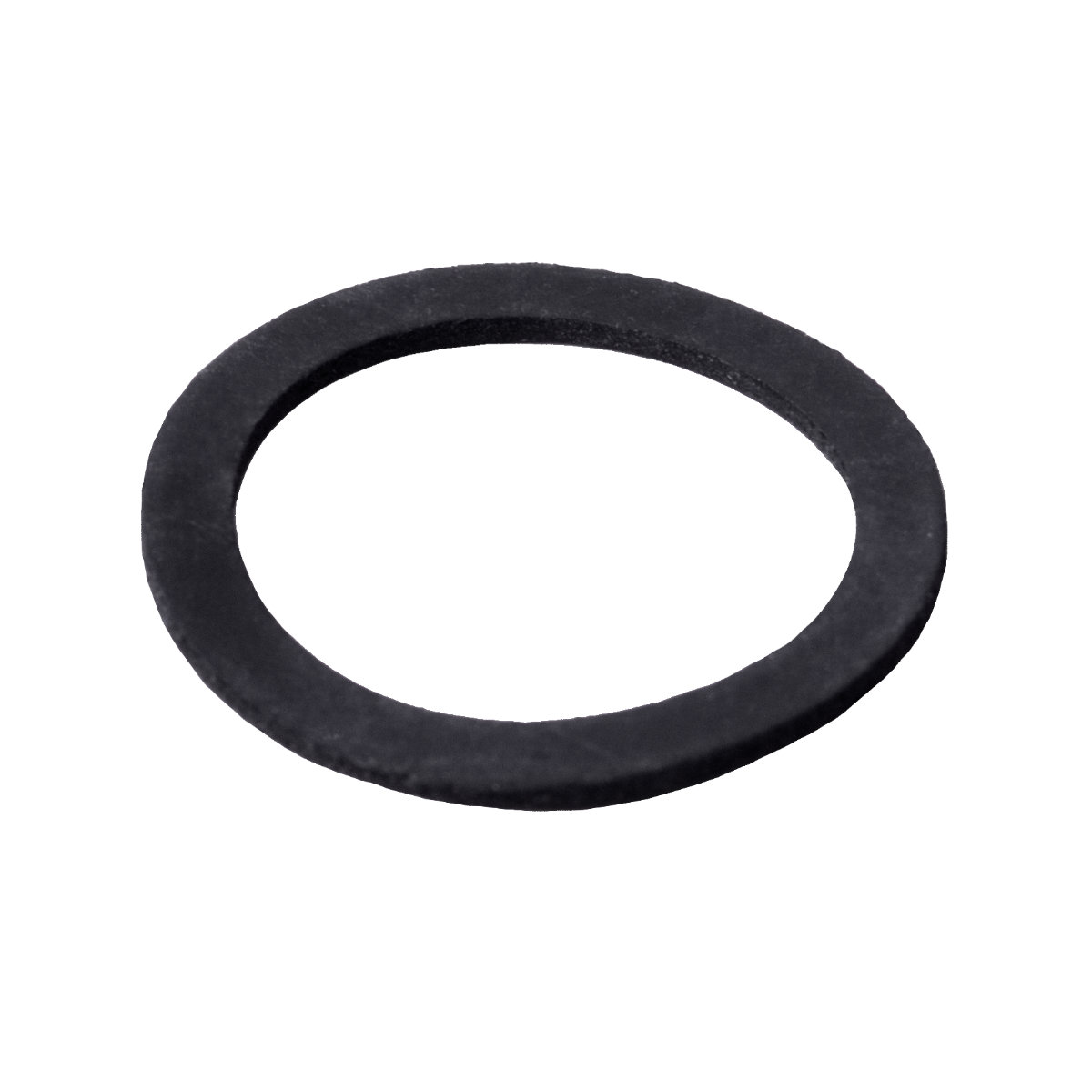

A-SW/M32 FB - Adaptalok podložka
EAN kod8595057625716
Tarifni broj39174000
Bezhalogeni materijalyes
UV Stabilnoyes
Samogasivi30 s
Otpornost na temperaturu
stable mounting: -50 to + 120 ° C; flexible mounting: -45 to +120 ° C
Promjer cijevi34 mm
Combination of accessories and pipes is always controlled by outside diameter of the pipe used.
Područje s opasnošću od eksplozije
Can be installed in a zone with the danger of explosion of flammable gases and vapors of zone 2 and into the zone of danger of explosion of flammable dusts of zone 22.
Vrste zaštiteIP 66
StandardiČSN EN 61386-24

Adaptalok is a system of utilities allowing to terminate and fix the pipe. Utilities allow 45° and 90° tapping and direct threaded termination - M16 - M50 or PG13,5 - PG48. pipe termination is available as for flange as well. Installation and removal is easy and quick. Utilities are equipped with removal part allowing to remove the termination easily and without breaking.
