EAN kod8595057604223
Tarifni broj85381000
Težina0,8650 kg/pcs
MaterijalAl
Otpornost na temperaturu-25 - 70 °C
Mehanička zaštitaIK10
Širina120 mm
Visina120 mm
Dubina76 mm
Promjer otvora za ugradnju8 mm
Klasa reakcije na požar podložnog materijalaA1 - D
Proširivanje reakcije na vatru temeljnog materijala
Combined with a 5 mm thermal insulating, non-flammable pad, assembly on building materials can be carried out without restriction of the reaction to fire class A1
Vrste zaštiteIP 54
Opis paketathe glands for threaded pipes P21

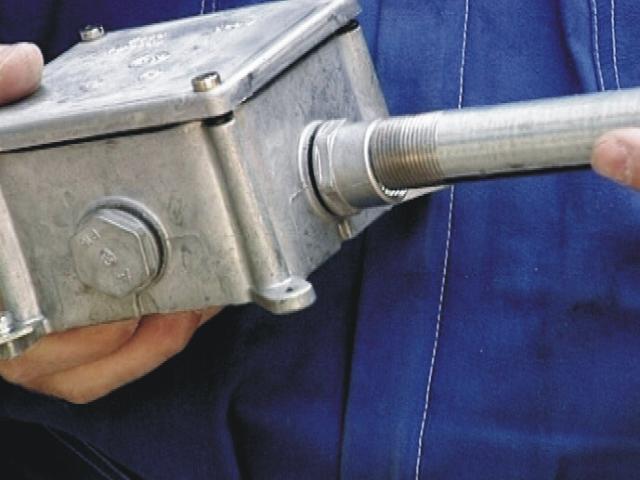

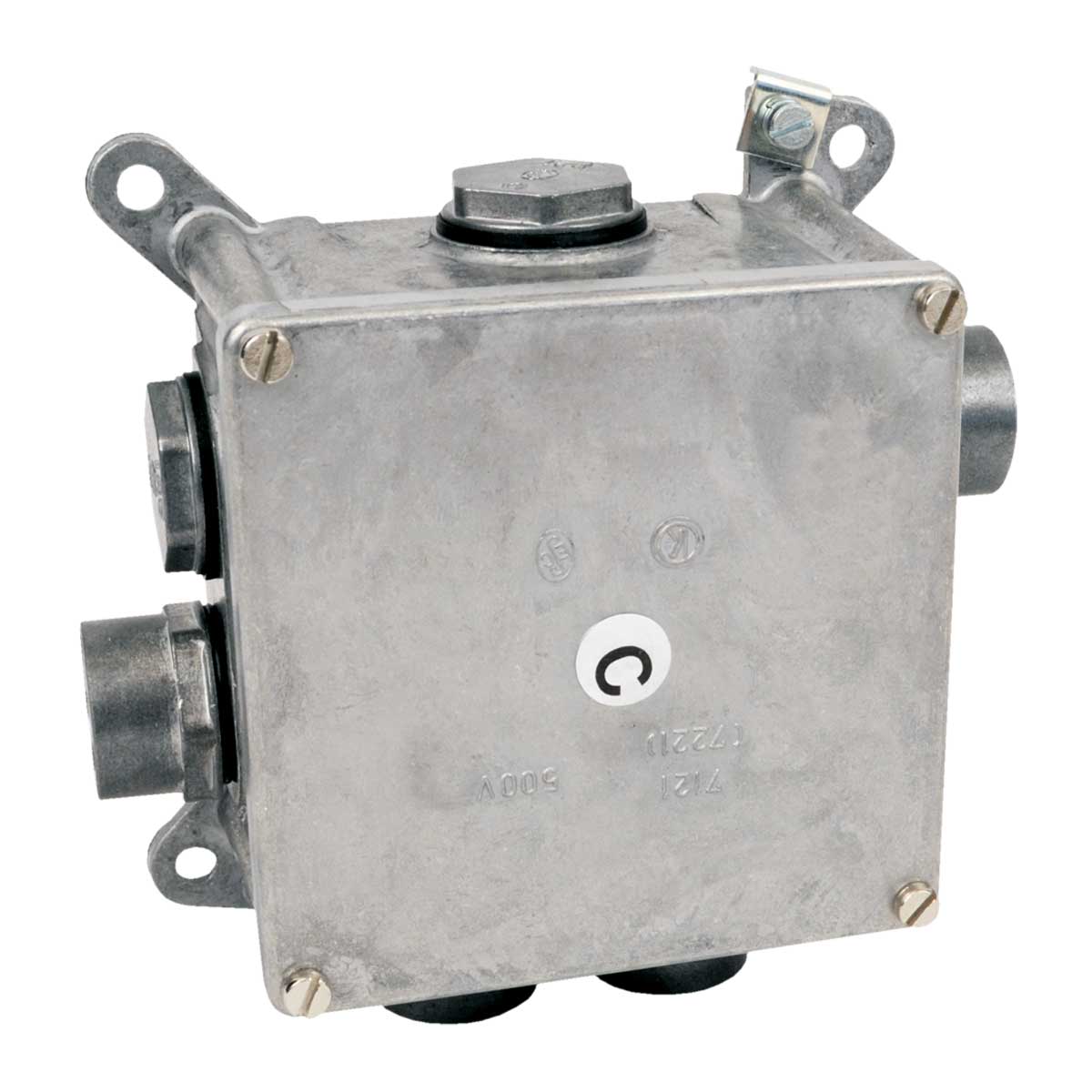

Boxes for piping with steel threaded or metal flexible pipes. Three glands and one plug evenly distributed on the sides of the box. Terminal plate is not included in the box. 7221 C: fitted with a clamp for installation in TNS networks.
