EAN kod8595057603332
Tarifni broj39259080
Težina0,0934 kg/pcs
Bojadark grey RAL 7012
MaterijalPVC
Materijal bez uljayes
Samogasivi30 s
Nazivni napon<= 400 V
Nazivna struja<= 16 A
Otpornost na temperaturu-5 - 60 °C
Probna petlja850 °C
Širina72 mm
Visina72 mm
Dubina42 mm
Klasa reakcije na požar podložnog materijalaA1 - D
Proširivanje reakcije na vatru temeljnog materijala
Combined with a 5 mm thermal insulating, non-flammable pad, assembly on building materials can be carried out without restriction of the reaction to fire class A1 - F
Vrste zaštiteIP 40
StandardiČSN EN 60 670-1
Opis paketa

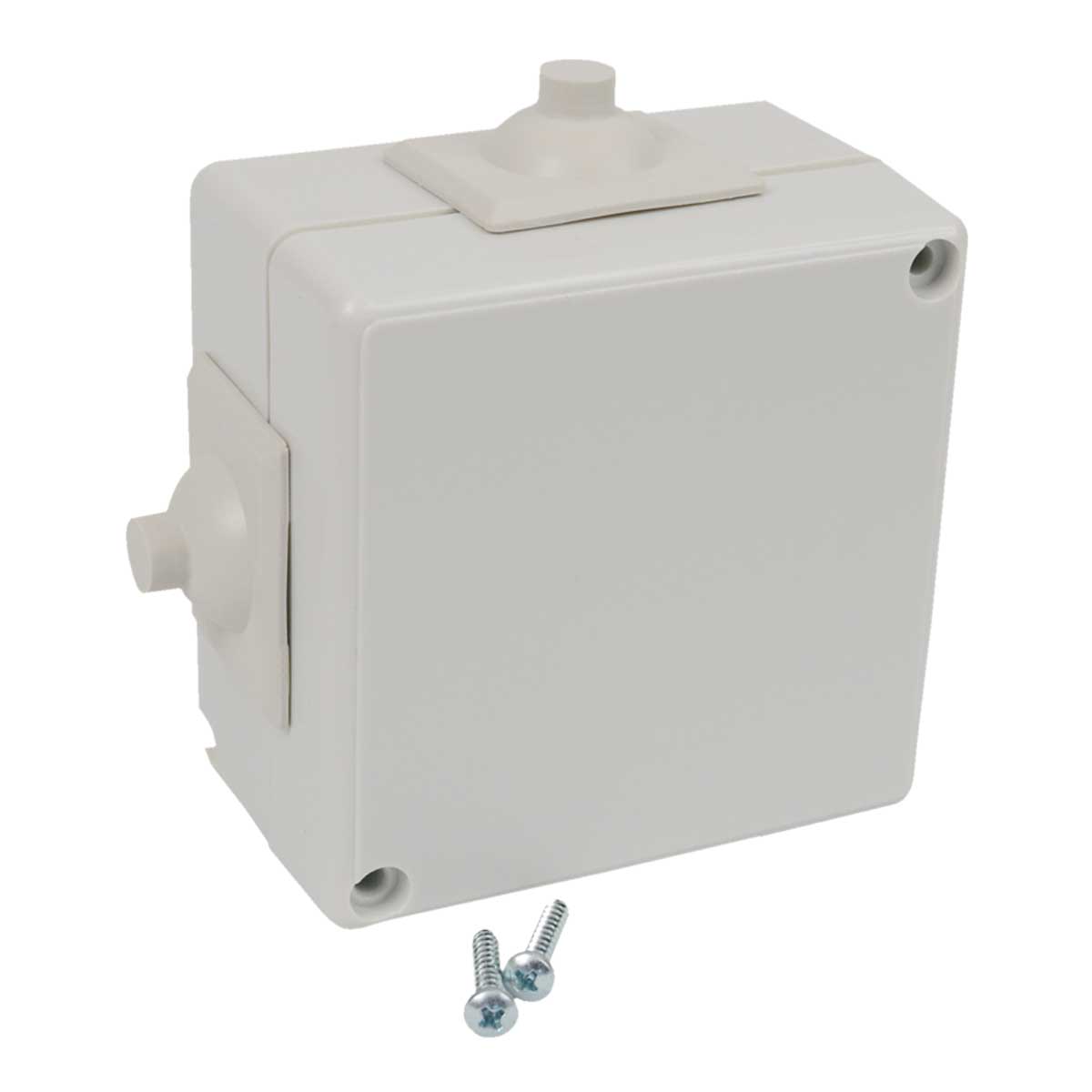

the grommets and screws for mounting lid inserted in the box, each box is packed in a shrink foil and labeled

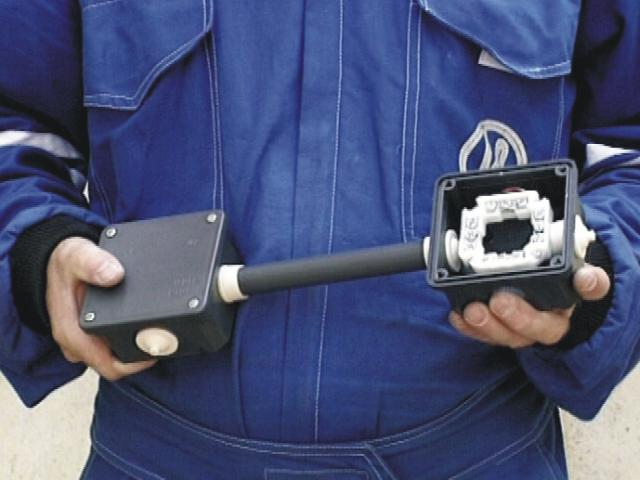

For installation in environment with increased humidity, dust, chemical and corrosion resistance in environments with increased risk of mechanical damage. Universal grommets for cables and pipes, grommets can be ordered separately. To install on materials with fire classes E or F, use thermally insulating pad.
