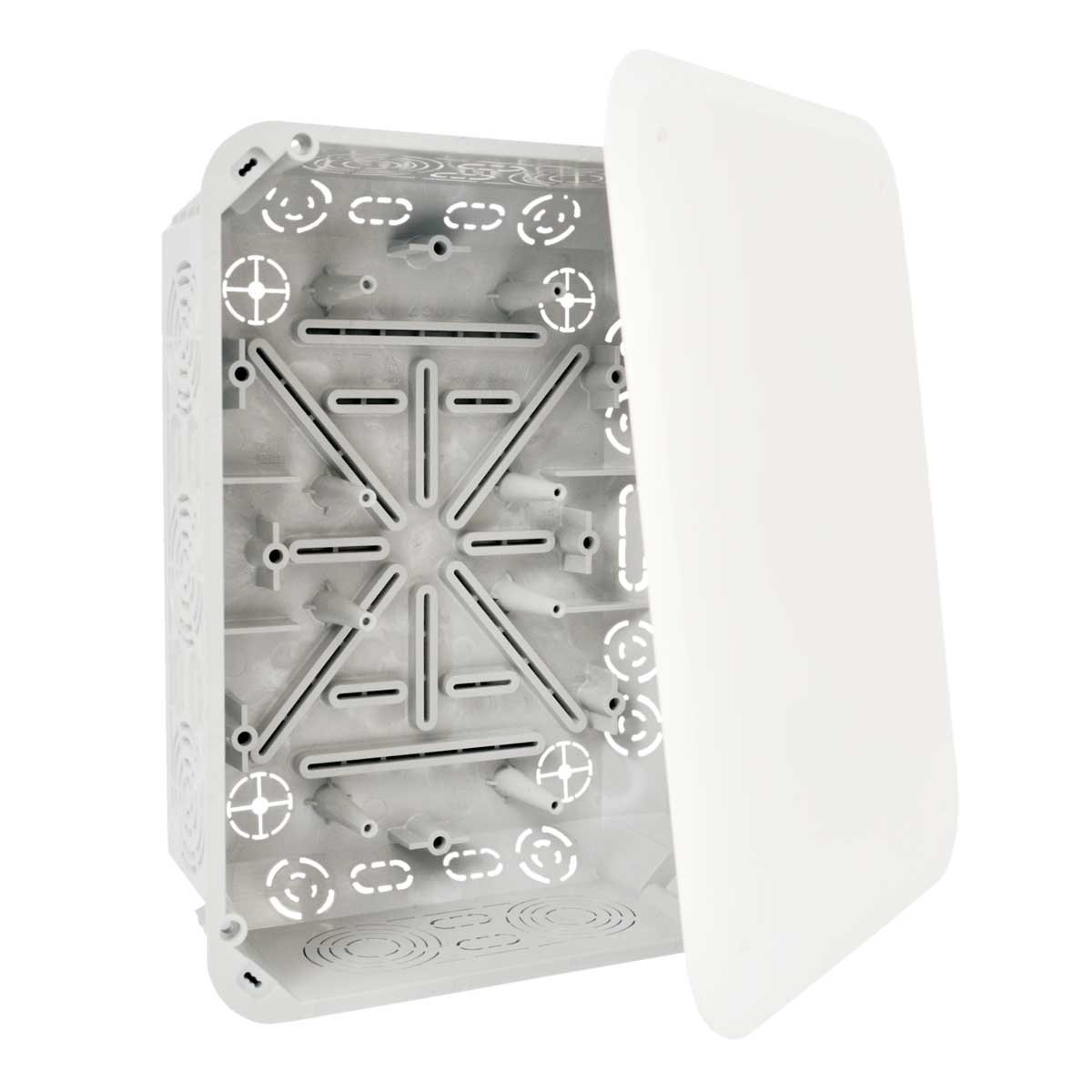

Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
KT250_1_EN
| EAN kod | 8595057632738 |
| Tarifni broj | 85381000 |
| Težina | 0,54 kg/pcs |
| Materijal | PVC |
| Materijal bez ulja | yes |
| Samogasivi | 30 s |
| Nazivni napon | <= 400 V |
| Nazivna struja | <= 16 A |
| Otpornost na temperaturu | -5 - 60 °C |
| Probna petlja | 850 °C |
| Širina | 234 mm |
| Visina | 176 mm |
| Dubina | 79 mm |
| Klasa reakcije na požar podložnog materijala | A1 - D |
| Standardi | ČSN EN 60 670-1 |
| Opis paketa individual boxes with lids packed in shrink foil and provided with a label and placed in a carton | |
A large number of knockouts for inserting cables and pipes. Possibility to install support trunking TS 35 and equipotential terminal plate. Option to set the lid using oval holes in the box to the horizontal position. Possibility to break the sidewall for easier cable handling.
