Ilustrativni prikaz

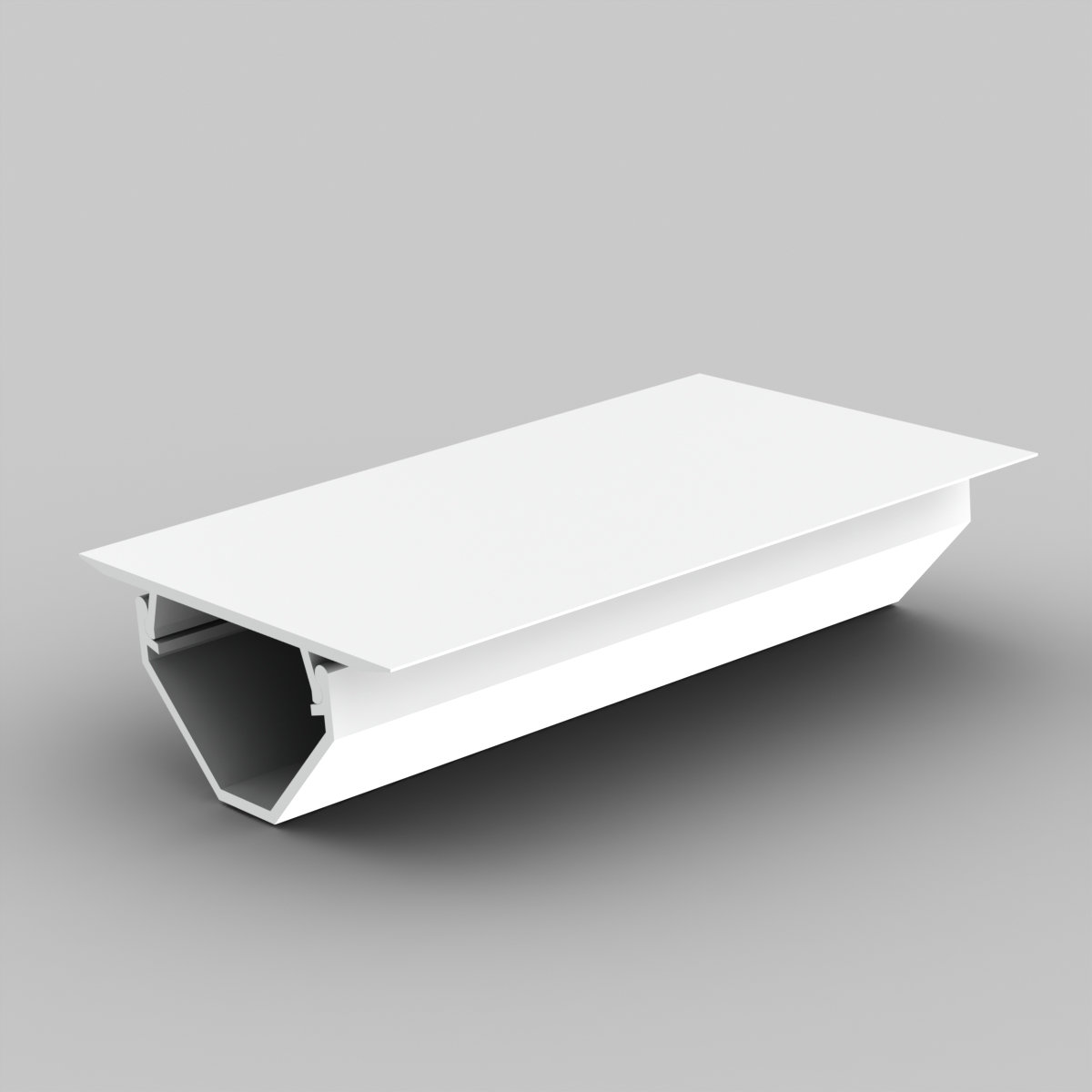

LR 30 HB - lišta rohová

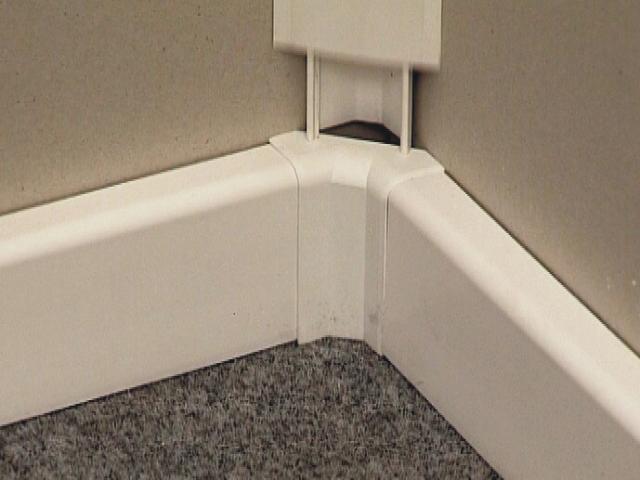

způsob montáže
To download 3D models, please login or create an account and request access.
EAN kod8595057615908
Tarifni broj39259020
Težina0,36 kg/m
Bojawhite
MaterijalPVC
Materijal bez uljayes
Samogasivi30 s
Otpornost na temperaturu-5 - 60 °C
Probna petlja850 °C
Otpornost na udar1 J
Antibacterialyes

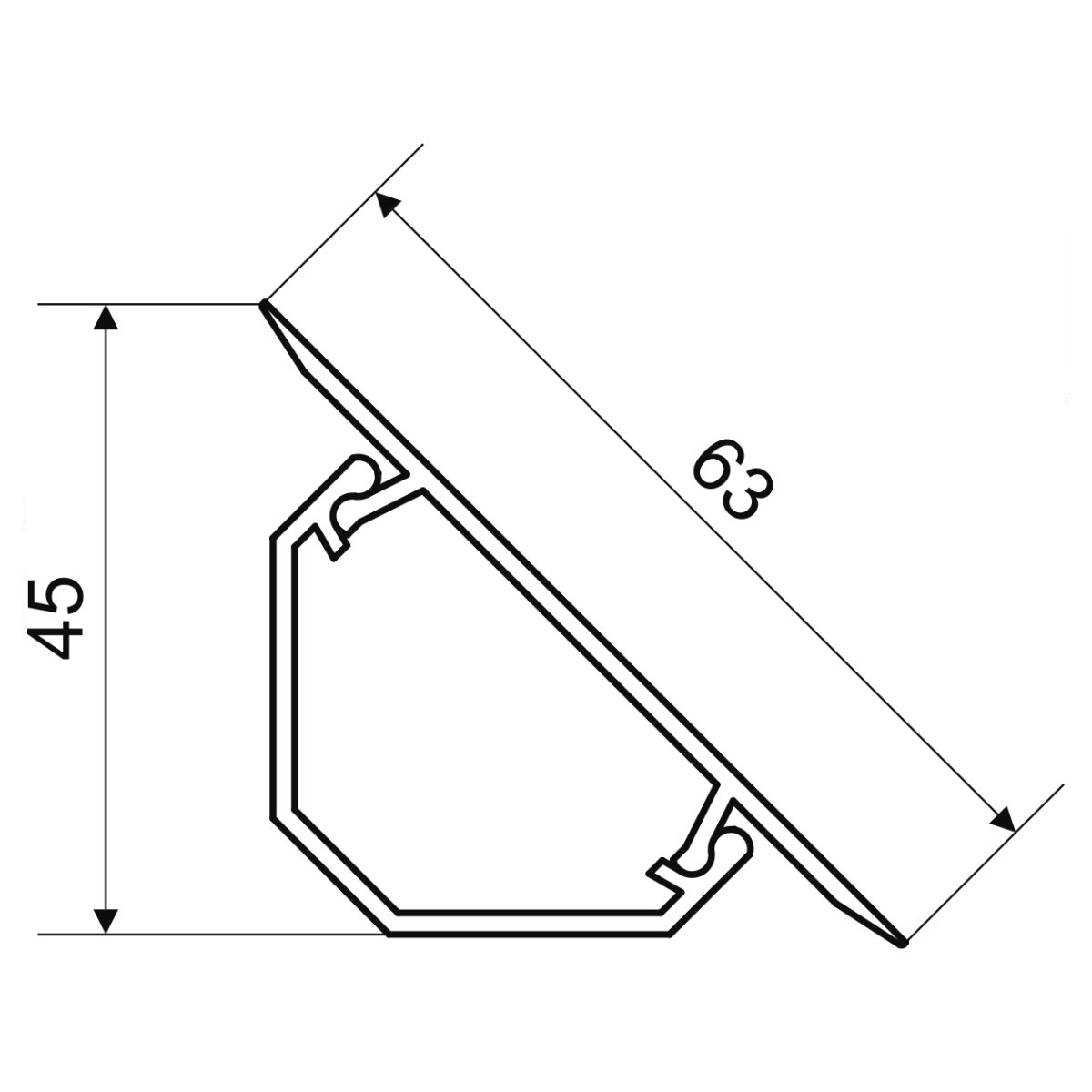

Širina63 mm
Visina24,5 mm
Dužina2,6 m
Unutarnje područje560 mm2
Tolerancija
The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C.
Područje s opasnošću od eksplozije
Electro-installation trunking (insertive, rectangular, halogen-free) and parapet canals with accesories can be installed in zones with explosion hazard of flammable gases (zone 2) and with the risk of explosion of flammable dusts (zone 22), installation must comply with EN 60079-14.
Klasa reakcije na požarA1 - F
Vrste zaštiteIP 40
StandardiČSN EN 50 085-1
Opis paketapackage - carton

Designed for installation in the corner between the floor and wall of the room as well as between two walls, or wall and ceiling. Length adjusted to standard room height. Lid edge manufactured with softened material for better adhesion to the foundation. Registered industrial design.
