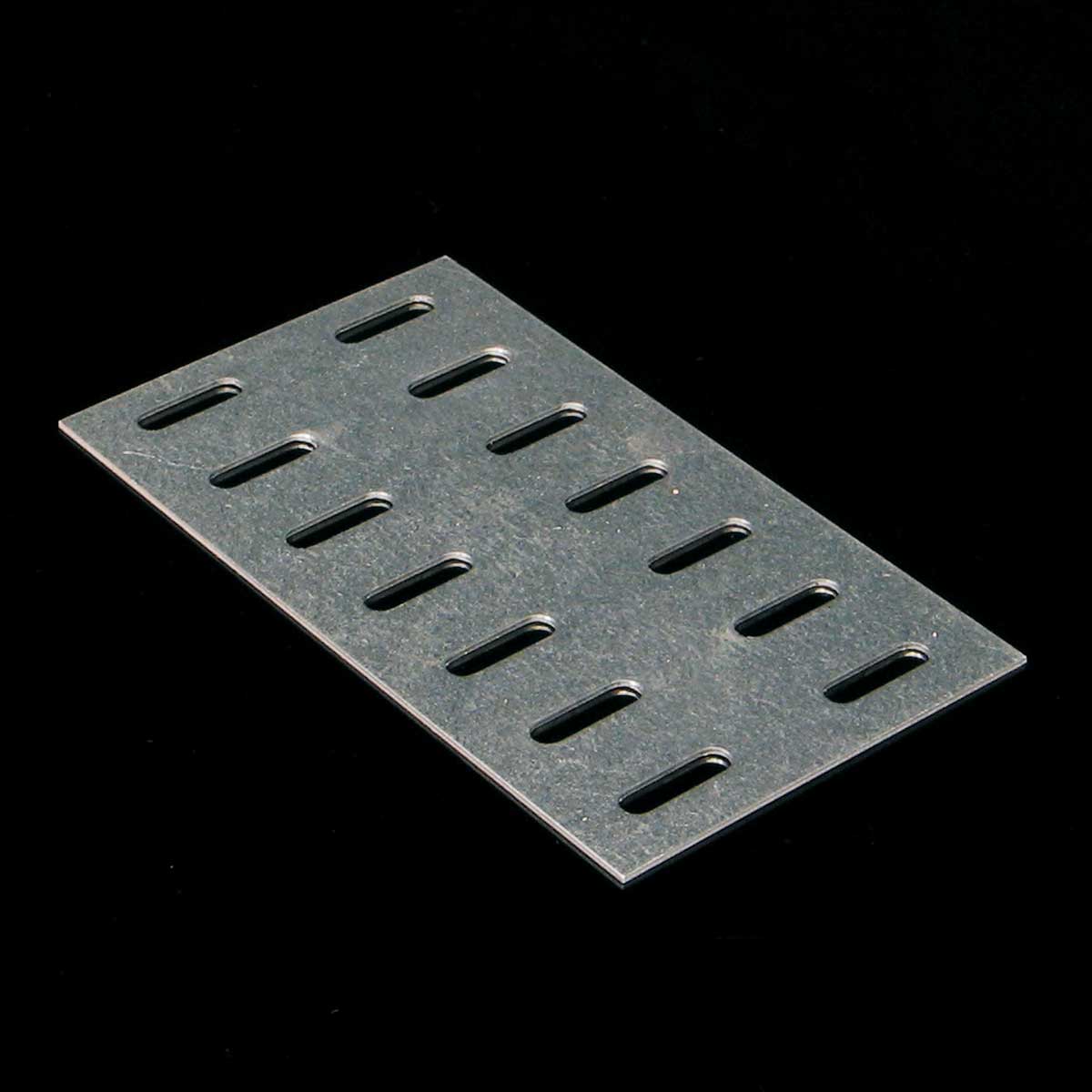

Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
DV_EN
| EAN kod | 8595568939425 |
| Tarifni broj | 73269098 |
| Težina | 0,1271 kg/kom |
| Površinska obrada | Magnelis® |
| Otpornost na temperaturu | -50 - +150 °C |
| Standardi | ČSN EN 61537 |
| Debljina metala | 1,5 mm |
| Količina vijaka za spajanje | 4 |
| Dimenzija A | 125 mm |
| Za širinu kabelske ploče | 150 mm |
Is used for reinforcing the tray connections without integrated coupling. It is fastened by the bolts NSM 6X10 to the tray bottom.
