EAN kod8595568936905
Tarifni broj39172390
Težina2,2000 kg/m
Bojared
Materijal
outer layer - virgin HDPE, inner layer - recycled HDPE
Bezhalogeni materijalyes
Temperatura ugradnje-25 - 90 °C
Radna temperatura-55 - 90 °C
Mehanički otpor450 N/20 cm
Dužina3 m
Vanjski promjer110 mm
Unutarnji promjer (min.)100 mm
Tolerancijalength ± 10 mm
Klasa reakcije na požar podložnog materijalaA1
Vrste zaštiteIP 30
StandardiČSN EN 61386-24
Opis paketain distributed position

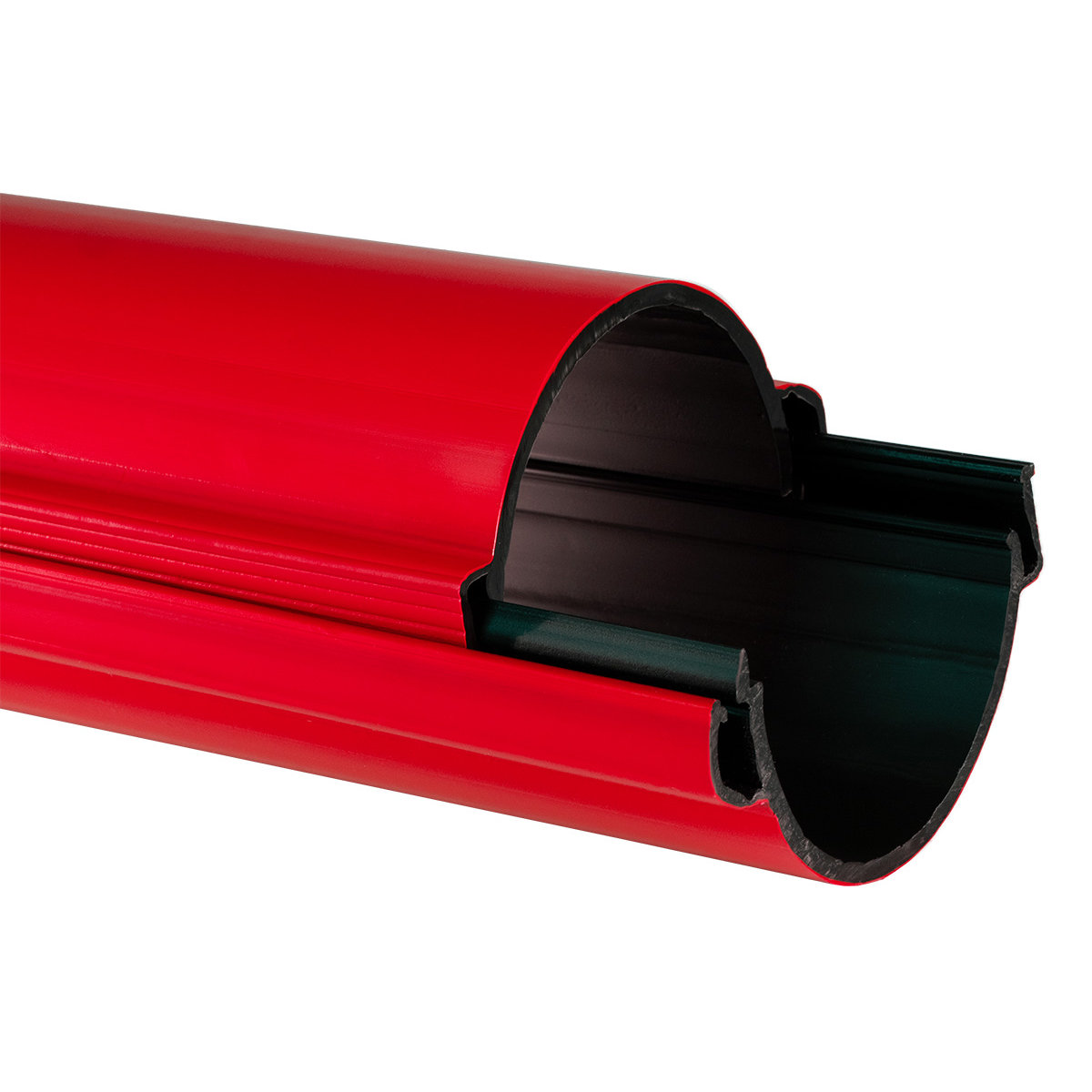

Cable laying and for a laying-out of the energy and communication lines. Another possible application is a protection of already installed underground cables. The protectors consist of two identical parts. When installing, the cables are put in the bottom part and then the top part is snapped to the bottom one. Connecting of protectors is performed by overlapping joined lower parts with an upper part at length of approximately 30 cm. The divided cable ducts are manufactured and tested in accordance with standard ČSN EN 61386-24.
