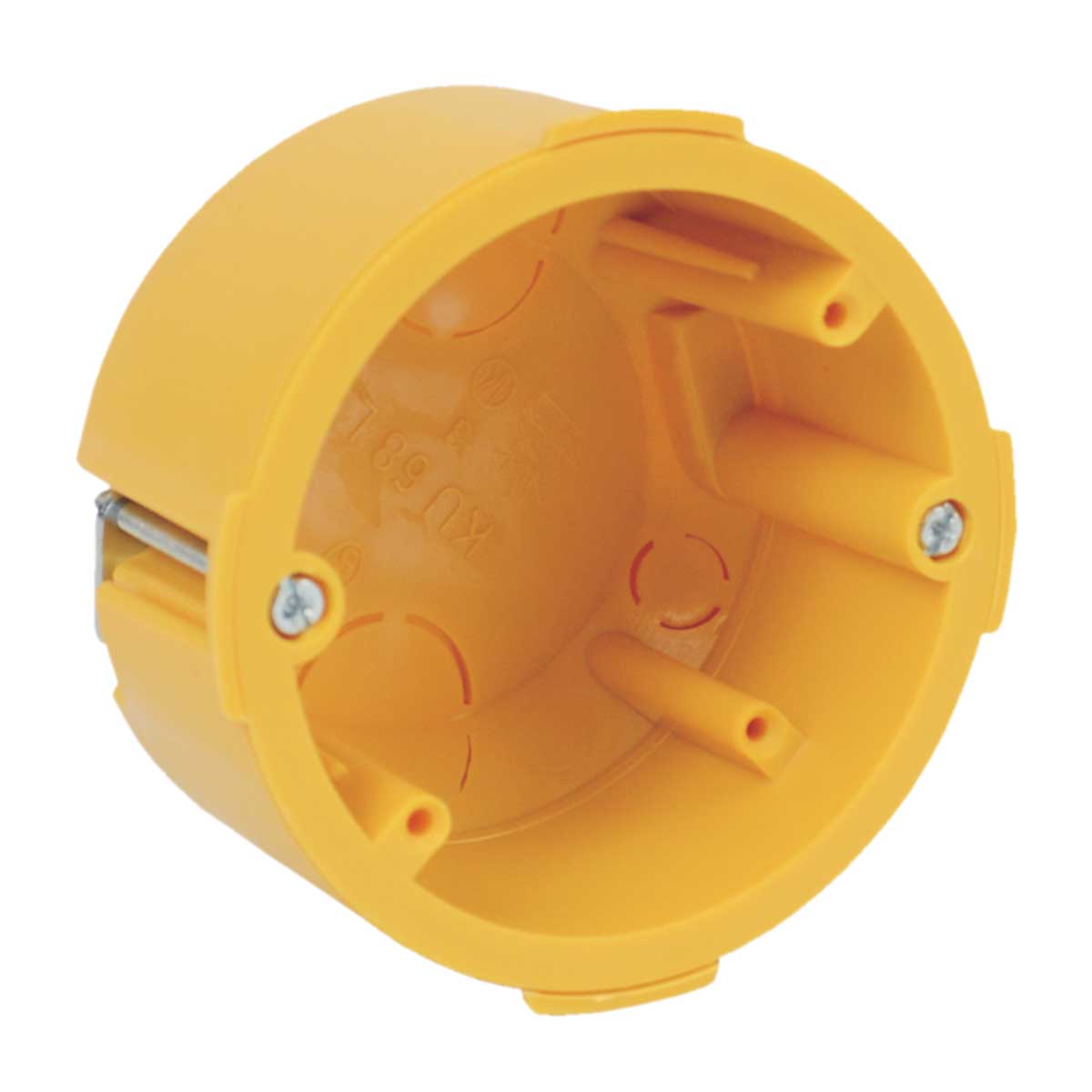

Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
KI68L1_EN
| EAN kod | 8595057600119 |
| Tarifni broj | 39259080 |
| Težina | 0,0827 kg/kom |
| Materijal | PVC |
| Materijal bez ulja | yes |
| Samogasivi | 30 s |
| Nazivni napon | <= 400 V |
| Nazivna struja | <= 16 A |
| Otpornost na temperaturu | -5 - +60 °C |
| Probna petlja | 850 °C |
| Prosječni | 80 mm |
| Dubina | 50 mm |
| Promjer rupa (bušenih) | 79,5 mm |
| Preporuka proizvođača For all range of products in hollow walls, we recommend using the milling sets supplied by us. | |
| Klasa reakcije na požar podložnog materijala | A - C3 |
| Omogućava montažu dvostruke utičnice | yes |
| Vrste zaštite | IP 30 |
| Standardi | ČSN EN 60 670-1 |
| Opis paketa individual boxes fitted with screws for installation in plasterboard | |
According to the formerly valid standard ČSN 73 0862 the box complies with materials of fire classes A - C3. Special added outer sheat. Mounting screws are fitted with a triple thread for quick installation. The IP30 protection a box fitted with an appropriate lid or a device with a higher or equal IP30 protection.
