Ilustrativni prikaz
INOXDS_EN
| EAN kod | 8595568934185 |
| Tarifni broj | 83024190 |
| Težina | 0,2565 kg/pcs |
| Površinska obrada | Stainless steel AISI 304 |
| Standardi | ČSN EN 61537 |
| Maksimalno opterećenje | 150 kg |
| Dimenzija A | 220 mm |
| Dimenzija B | 64 mm |
| Za širinu kabelske ploče | 200 mm |

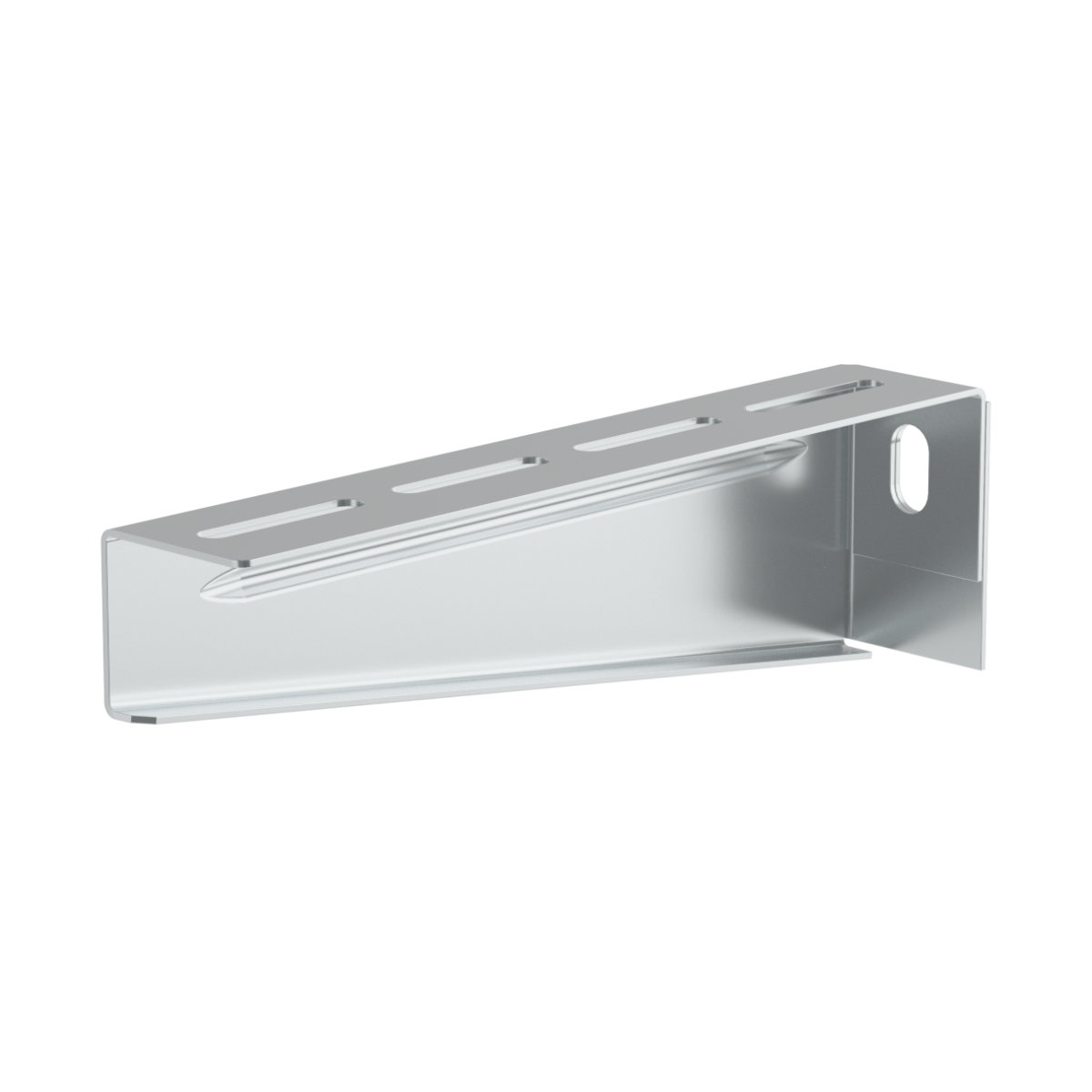

The bracket is used as an element to create a supporting structure for a cable tray. It is designated for installation on the wall or mounting profile. Attached to the wall using 2 pcs Ø 8 mm anchors. NIXSM 6X10 bolts are used to attach the cable tray to the bracket. To protect the cables, the bolt head is inside the cable tray.
