EAN kod8595568934154
Tarifni broj73269098
Težina1,00 kg/pcs
Površinska obradaStainless steel AISI 304
Otpornost na temperaturu-50 - 150 °C
Dužina630 mm
StandardiČSN EN 61537
Debljina metala1,5 mm
Za visinu kabelske police110 mm

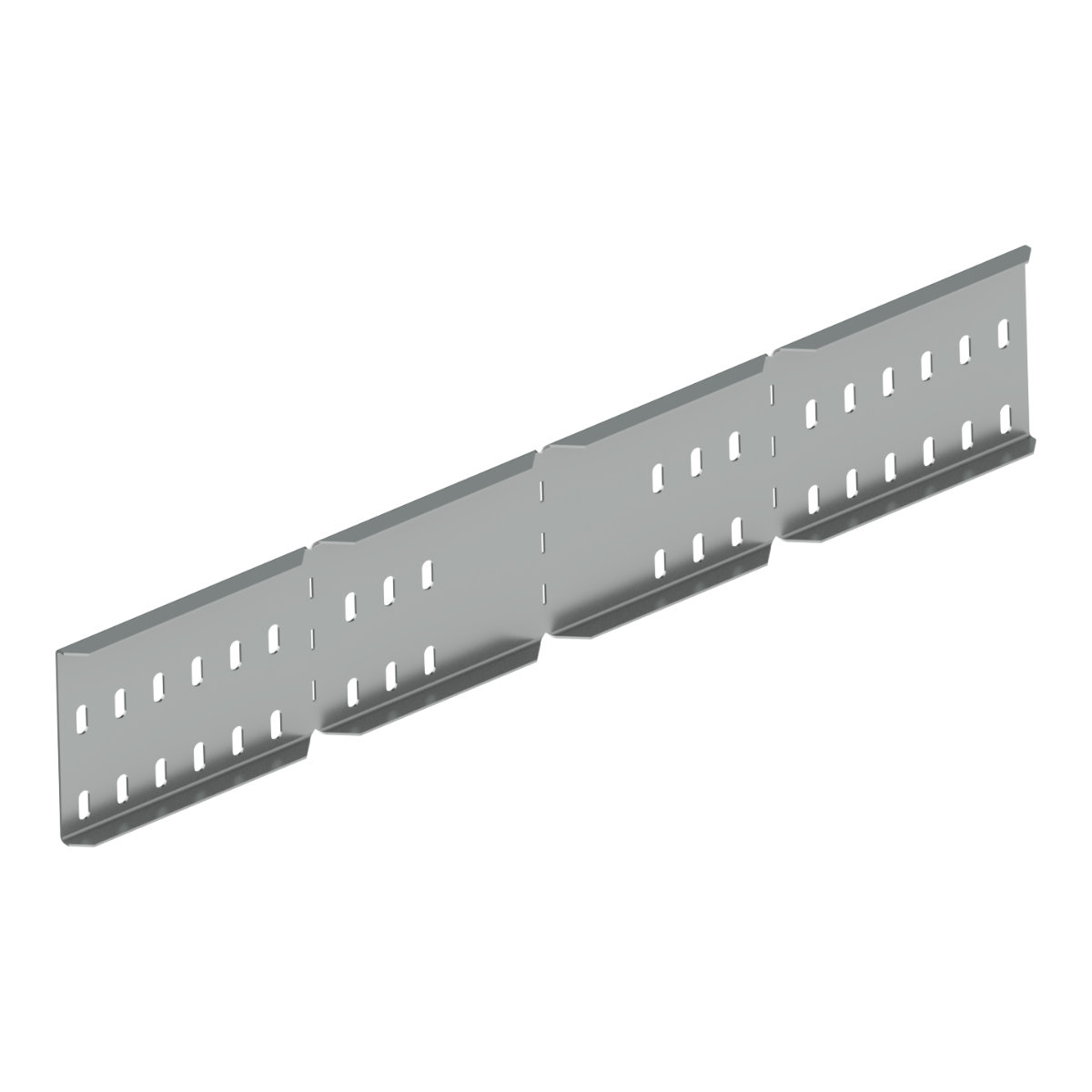

It is used for bending off of the cable ladder line or as a replacement of cable ladder adapting piece. Couplings are a more cost-effective and versatile way of creating a tray branch in a horizontal direction. Cut the side wall of the cable ladder to bend off c. 15 mm above the bottom – in the bottom perforation axis. It is necessary to use NCH. To fix the connection use the bolt NIXSM 6X10. To protect the cables, the bolt head is inside the cable tray.
