EAN kod8595568932457
Tarifni broj39173300
Težina0.41 kg/m
Bojablue/black
MaterijalHDPE
Bezhalogeni materijalyes
Otpornost na temperaturu-5 - 50 °C
Mehanički otpor750 N/20 cm
Otpornost na udarN (normal, according to ČSN EN 61 386-24)
Otpornost na savijanjeflexible
Vanjski promjer40 mm
Unutarnji promjer33 mm
Tolerancijalength ± 2 mm/m
Minimalni radijus savijanja400 mm
Preporuka proizvođača
The producer recommends the installation of plastic pipes at temperatures above 0 °C.
Bilješka
Protectors are tested at a pressure of 1.5 MPa for 1 hour
Klasa reakcije na požarA1
Opis paketa
Hermess. Packaging on wooden drums and pallets for unwinding drums isdeliverd just upon previous order according to the customer

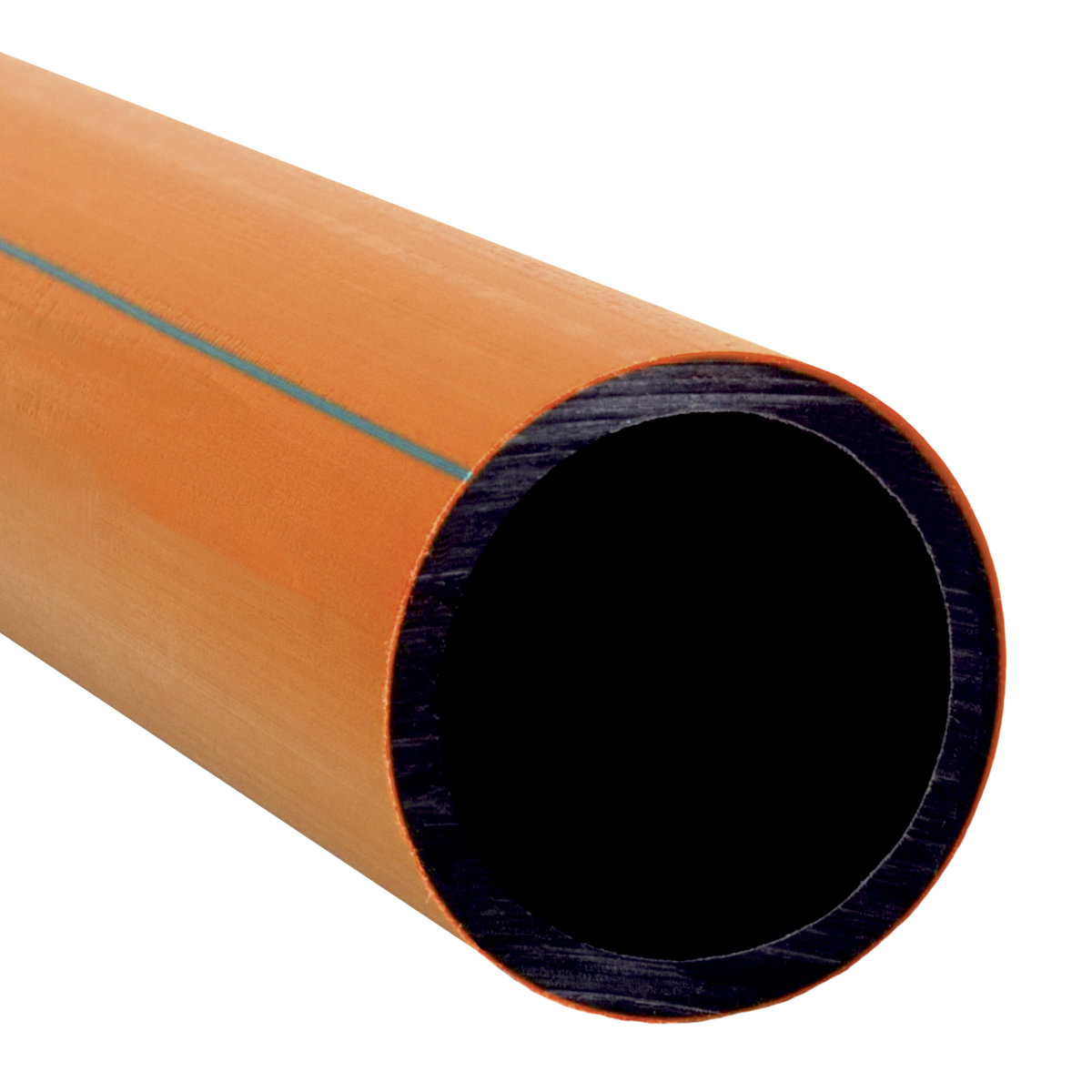

Single-coated pipes designed to protect cables with optical fibers under the ground. Inner material - recycled HDPE. For larger volumes different color versions (beyond presented versions), labeling, number of differential stripes. The packaging on wooden drums and pallets for unwinding drums is delivered just upon previous order according to the customers's specification.
